Insulin injection - needle handling

How do I use a pen needle?

Injecting will become (or already is) a routine, you no longer have to think about. However, during the first few weeks, it is helpful to have some guidance with the needle handling. If you have already been injecting for a long time, and feel like you want to check your technique in general – be our guest. Below, you find every little step explained in a picture with a description.

Step by step

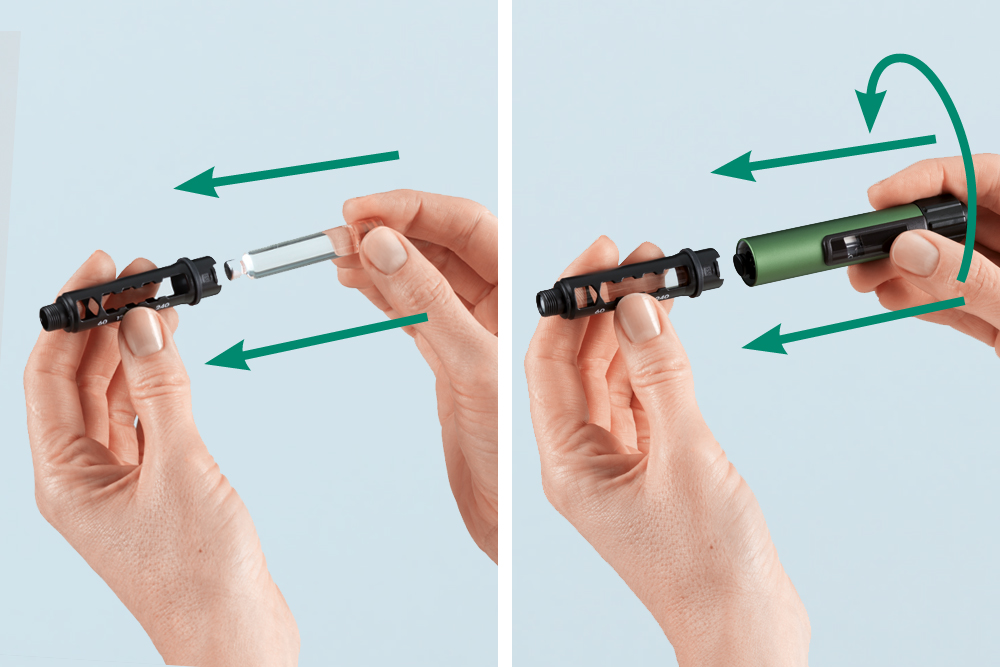

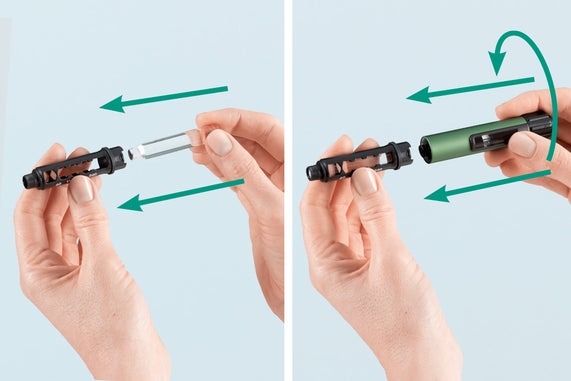

Needle handling - insert the cartridge into your pen

Insert the cartridge into your pen. This does not apply if you inject yourself with a ready-to-use pen.

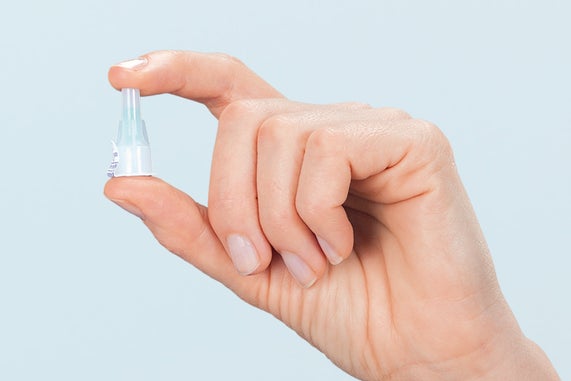

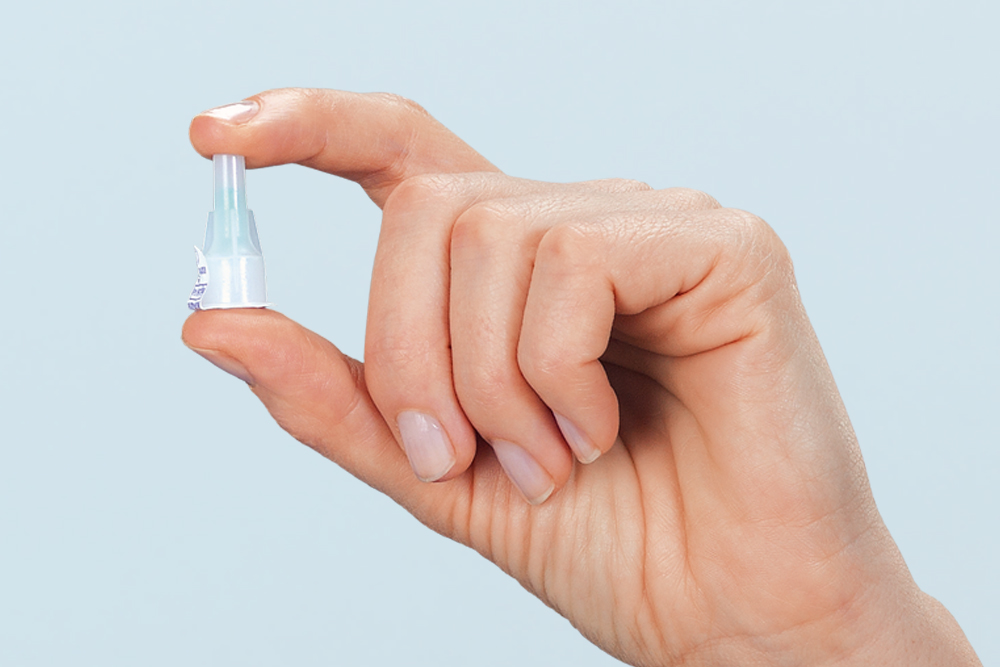

Needle handling - always take a new pen needle

Always take a new pen needle.

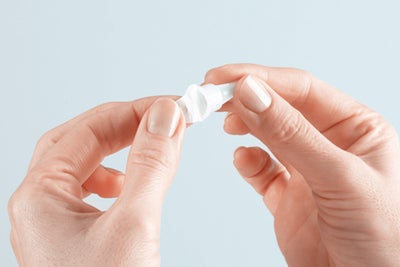

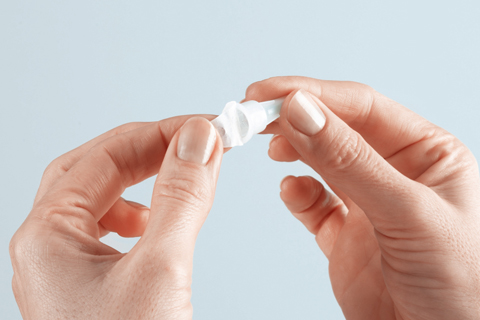

Needle handling - remove the peel paper

Remove the peel paper.

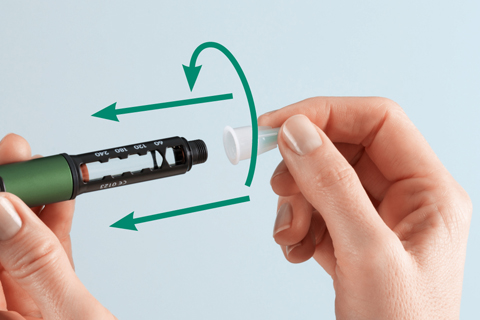

Needle handling - place the whole container with the needle inside onto your injection device

Then place the whole container with the needle inside onto your injection device. Keep both parts straight.

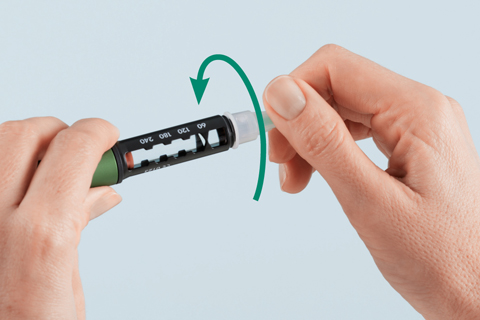

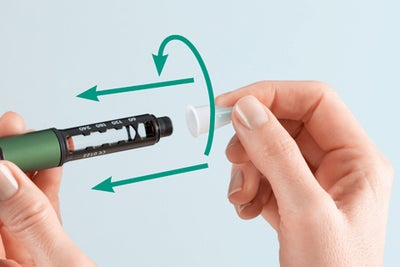

Needle handling - screw the needle onto your injection device

Screw the needle onto your injection device. Make sure it is a tight fit.

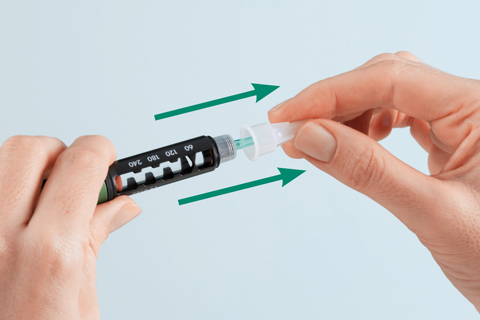

Needle handling - pull the needle container off and set it aside

Pull the needle container off and set it aside. You might need it later on.

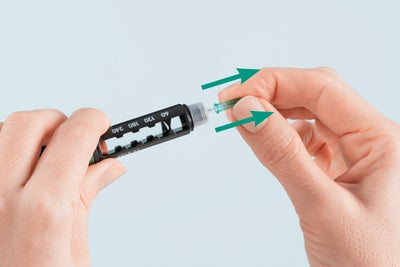

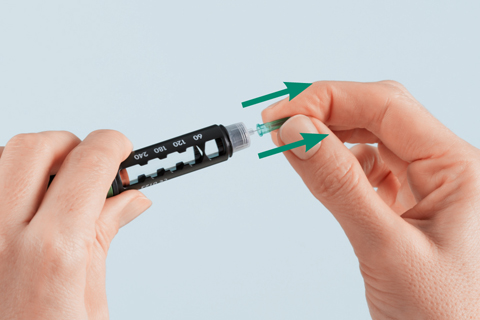

Needle handling - now, pull the small needle shield off without tilting it

Now, pull the small needle shield off without tilting it.

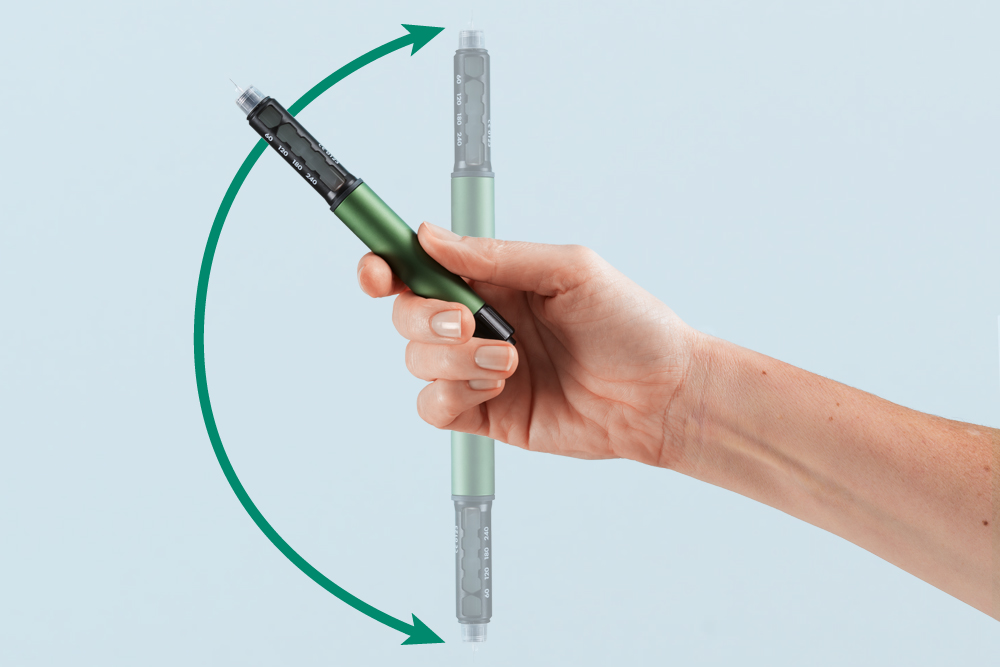

Needle handling - if you use mixed insulin, you need to tip it upside down 20 times

If you use mixed insulin, you need to tip it upside down 20 times. This ensures that the components are mixed properly.

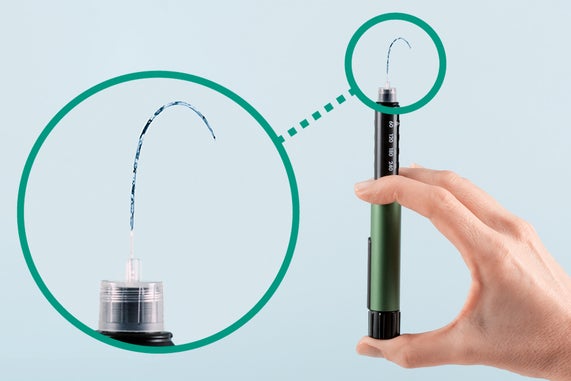

Needle handling - check the functionality of the pen (air shot)

Check the functionality of the pen (air shot) with the needle attached according to the instructions for use of your injection device.

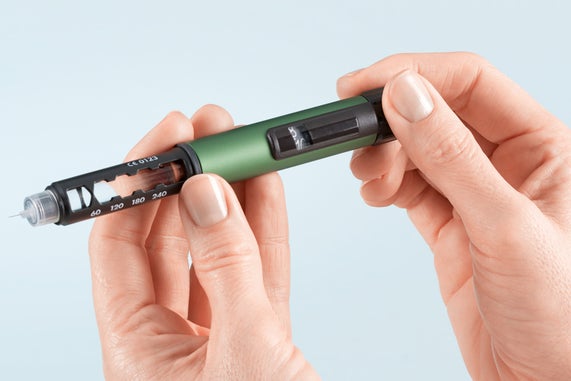

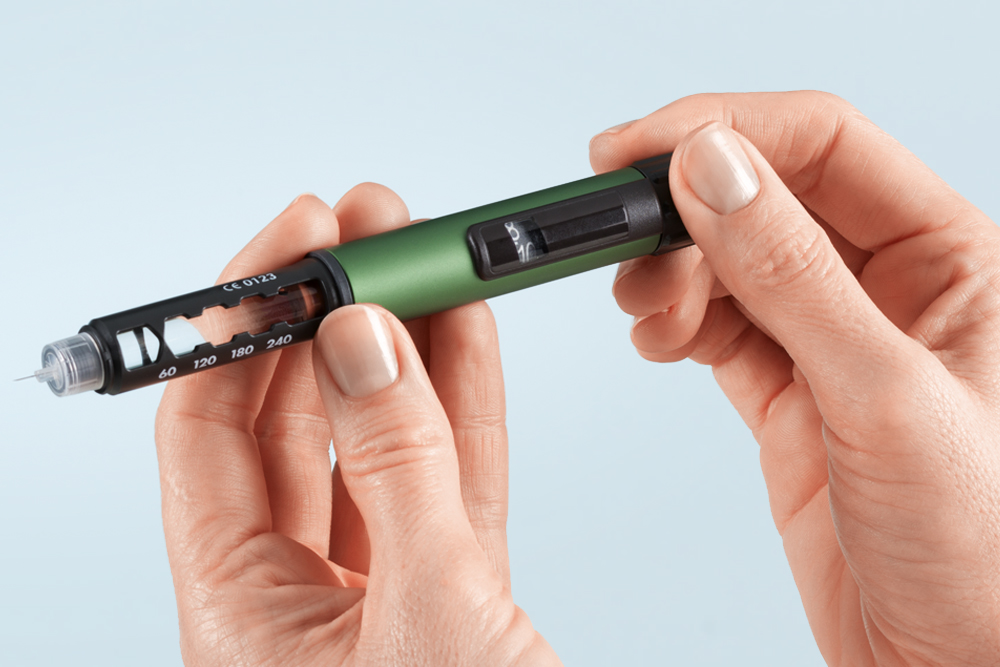

Needle handling - now dial the required dose

Now dial the required dose.

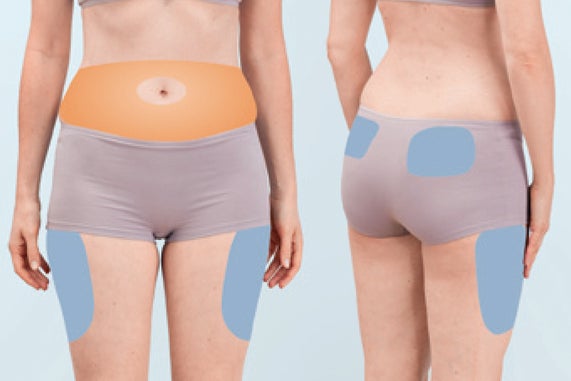

Needle handling - pick an area to inject into

Pick an area to inject into. The site and the skin should be in good condition. Consider rotation. Preferred areas to inject into are outer thighs, abdomen or buttocks.

Needle handling - as adult, you should pinch up if you use needles longer than 6 millimeters

As adult, you should pinch up if you use needles longer than 6 millimeters.

Needle handling - apply the injection technique which is recommended for your needle and inject

Apply the injection technique which is recommended for your needle and inject: Push the thumb button firmly until it is fully depressed. After the dose has been injected, hold the needle in for a good 10 seconds to receive the full dose and to prevent the insulin from leaking.

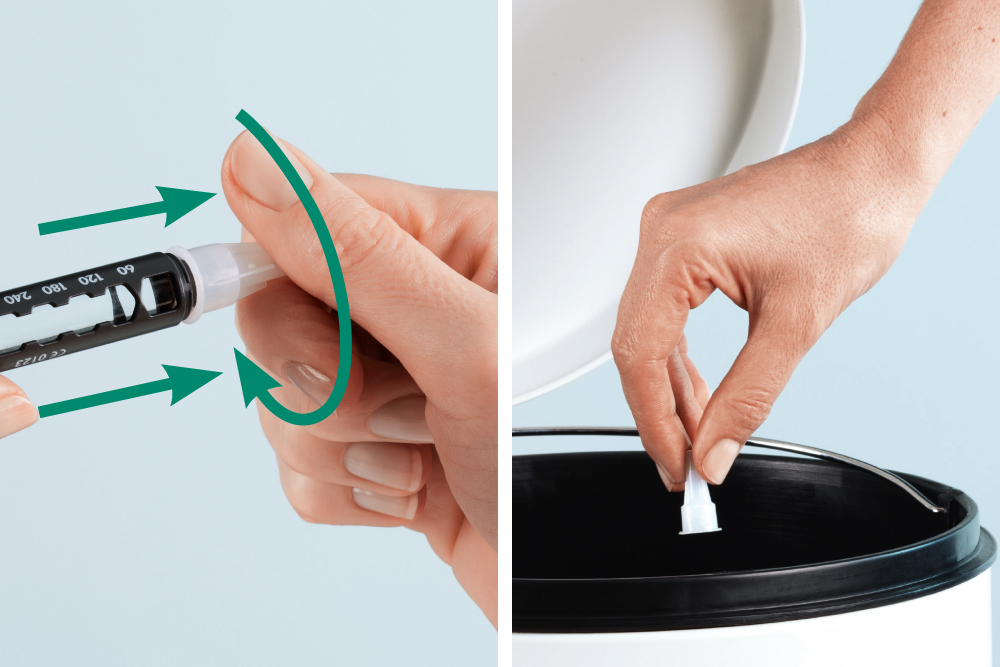

Needle handling - put the needle container back on the needle

One method to dispose of the needle is to carefully put the needle container back on the needle. Unscrew it with the container from your pen. Discard it according to local regulations e.g. in trash bin if allowed.

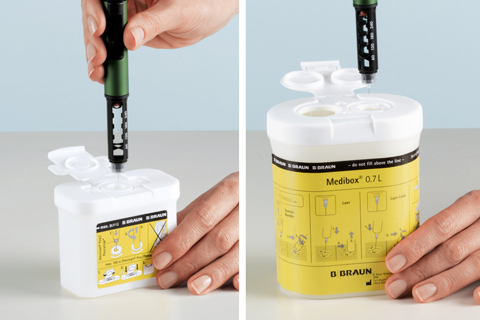

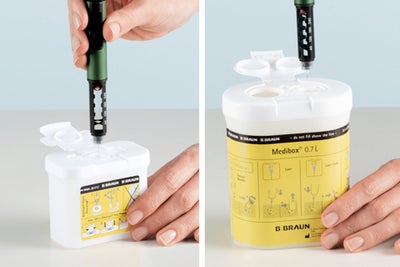

Needle handling - medical sharps collector

A much safer and recommended method of disposal is to use a medical sharps collector such as the Omnican® box or Medibox®.

If you have any questions concerning pen needles, handling them and injecting in general, you can either get in touch with your physician or consult the instructions for use of your pen device.
